| GOES-East/West Sectorized Cloud and Mositure Imagery (SCMI) | |
|---|---|
| GOES-East SCMI | GOES-West SCMI |
|
CONUS FullDisk Mesoscale-1 Mesoscale-2 PuertoRico |
CONUS FullDisk Mesoscale-1 Mesoscale-2 Alaska Hawaii |
| GOES-East/West Level 2 (L2) Products | |
| GOES-East L2 Image | GOES-East L2 Point |
|
Aerosol Detection Aerosol Optical Depth Cloud Mask Cloud Optical Depth Cloud Particle Size Cloud Top Height Cloud Top Phase Cloud Top Pressure Cloud Top Temperature Derived Stability Indicies Fire Detection Land Surface Temperature Rain Rate QPE Sea Surface Temperature Total Precipitable Water Volcanic Ash Legacy Vertical Profiles |
Derived Motion Winds |
| CIRA GOES-East/West L2 Image | Texas Tech GOES-East/West L2 Image |
|
Cloud Snow Debra Dust GeoColor |
|
| GOES-GVAR Imagery (archaic) | |

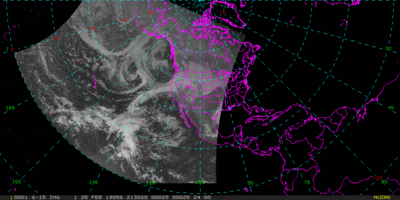

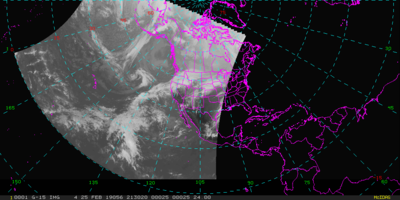

| GOES-West GVAR Image | |
|
CONUS SuperNational Detection Composites Alaska Hawaii |
|
Instrument Description -----------+------------------------------------------------------------------ ABI Advanced Baseline Imager - sixteen wavelength channels ABI scan modes: -------+------------------------------------------------------------------ Mode 3 15 min Full Disk, 5 min CONUS, 1 min/30 sec Mesoscale(s) Mode 4 5 min Full Disk Mode 6 10 min Full Disk, 5 min CONUS, 1 min/30 sec Mesoscale(s)

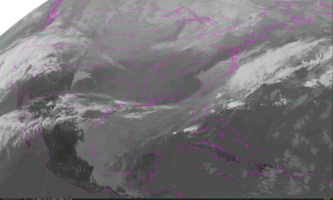

GOES-East CONUS - 5 minute Update Interval for Mode 3 or 6
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 30N, 87W 1.00 3000 x 5000 Band 2 0.64 um VIS clouds fog, insol, winds 30N, 87W 0.50 6000 x10000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 30N, 87W 1.00 3000 x 5000 Band 4 1.37 um Near IR cirrus cloud 30N, 87W 2.00 1500 x 2500 Band 5 1.61 um Near IR cloud phase, snow 30N, 87W 1.00 3000 x 5000 Band 6 2.24 um Near IR land/cloud, vege, snow 30N, 87W 2.00 1500 x 2500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 30N, 87W 2.00 1500 x 2500 Band 8 6.17 um IR High-level WV, winds, rainfall 30N, 87W 2.00 1500 x 2500 Band 9 6.93 um IR Mid-level WV, winds, rainfall 30N, 87W 2.00 1500 x 2500 Band 10 7.34 um IR Lower-level WV, winds & SO2 30N, 87W 2.00 1500 x 2500 Band 11 8.44 um IR Total WV cloud phase, dust 30N, 87W 2.00 1500 x 2500 Band 12 9.61 um IR Total ozone,turbulence,wind 30N, 87W 2.00 1500 x 2500 Band 13 10.3 um IR Surface & cloud 30N, 87W 2.00 1500 x 2500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 30N, 87W 2.00 1500 x 2500 Band 15 12.3 um IR Total water, ash, and SST 30N, 87W 2.00 1500 x 2500 Band 16 13.3 um IR Air temp, cloud height and amount 30N, 87W 2.00 1500 x 2500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/CONUS/Channel12/20190221/OR_ABI-L2-CMIPC-M6C12_G16_s20190521951130_e20190521951130_c20190521951130.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
GOES-East Full Disk - 15 minute Update Interval Mode 3, 5 minute Update Interval Mode 4, 10 minute Update Interval Mode 6
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 0N, 75W 6.00 1808 x 1808 Band 2 0.64 um VIS clouds fog, insol, winds 0N, 75W 6.00 1808 x 1808 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 0N, 75W 6.00 1808 x 1808 Band 4 1.37 um Near IR cirrus cloud 0N, 75W 6.00 1808 x 1808 Band 5 1.61 um Near IR cloud phase, snow 0N, 75W 6.00 1808 x 1808 Band 6 2.24 um Near IR land/cloud, vege, snow 0N, 75W 6.00 1808 x 1808 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 0N, 75W 6.00 1808 x 1808 Band 8 6.17 um IR High-level WV, winds, rainfall 0N, 75W 6.00 1808 x 1808 Band 9 6.93 um IR Mid-level WV, winds, rainfall 0N, 75W 6.00 1808 x 1808 Band 10 7.34 um IR Lower-level WV, winds & SO2 0N, 75W 6.00 1808 x 1808 Band 11 8.44 um IR Total WV cloud phase, dust 0N, 75W 6.00 1808 x 1808 Band 12 9.61 um IR Total ozone,turbulence,wind 0N, 75W 6.00 1808 x 1808 Band 13 10.3 um IR Surface & cloud 0N, 75W 6.00 1808 x 1808 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 0N, 75W 6.00 1808 x 1808 Band 15 12.3 um IR Total water, ash, and SST 0N, 75W 6.00 1808 x 1808 Band 16 13.3 um IR Air temp, cloud height and amount 0N, 75W 6.00 1808 x 1808 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/FullDisk/Channel15/20190221/OR_ABI-L2-CMIPF-M6C15_G16_s20190521950170_e20190521950170_c20190521950170.nc
Example LDM configuration file REQUEST lines: REQUEST NIMAGE "CMIPF.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
GOES-East Mesoscale-1 - 1 minute Update Interval if 2 Mesoscale Scans otherwise 30 seconds for Mode 3 or 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land var, var 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds var, var 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind var, var 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud var, var 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow var, var 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow var, var 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds var, var 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall var, var 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall var, var 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 var, var 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust var, var 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind var, var 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud var, var 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall var, var 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST var, var 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount var, var 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/Mesoscale-1/Channel02/20190221/OR_ABI-L2-CMIPM1-M6C02_G16_s20190522006210_e20190522006210_c20190522006210.nc
Example LDM configuration file REQUEST line: REQUEST SATELLITE "CMIPM1.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
GOES-East Mesoscale-2 - 1 minute Update Interval if 2 Mesoscale Scans otherwise 30 seconds for Mode 3 or 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land var, var 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds var, var 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind var, var 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud var, var 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow var, var 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow var, var 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds var, var 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall var, var 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall var, var 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 var, var 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust var, var 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind var, var 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud var, var 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall var, var 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST var, var 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount var, var 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/Mesoscale-2/Channel02/20190221/OR_ABI-L2-CMIPM2-M6C02_G16_s20190522011510_e20190522011510_c20190522011510.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPM2.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

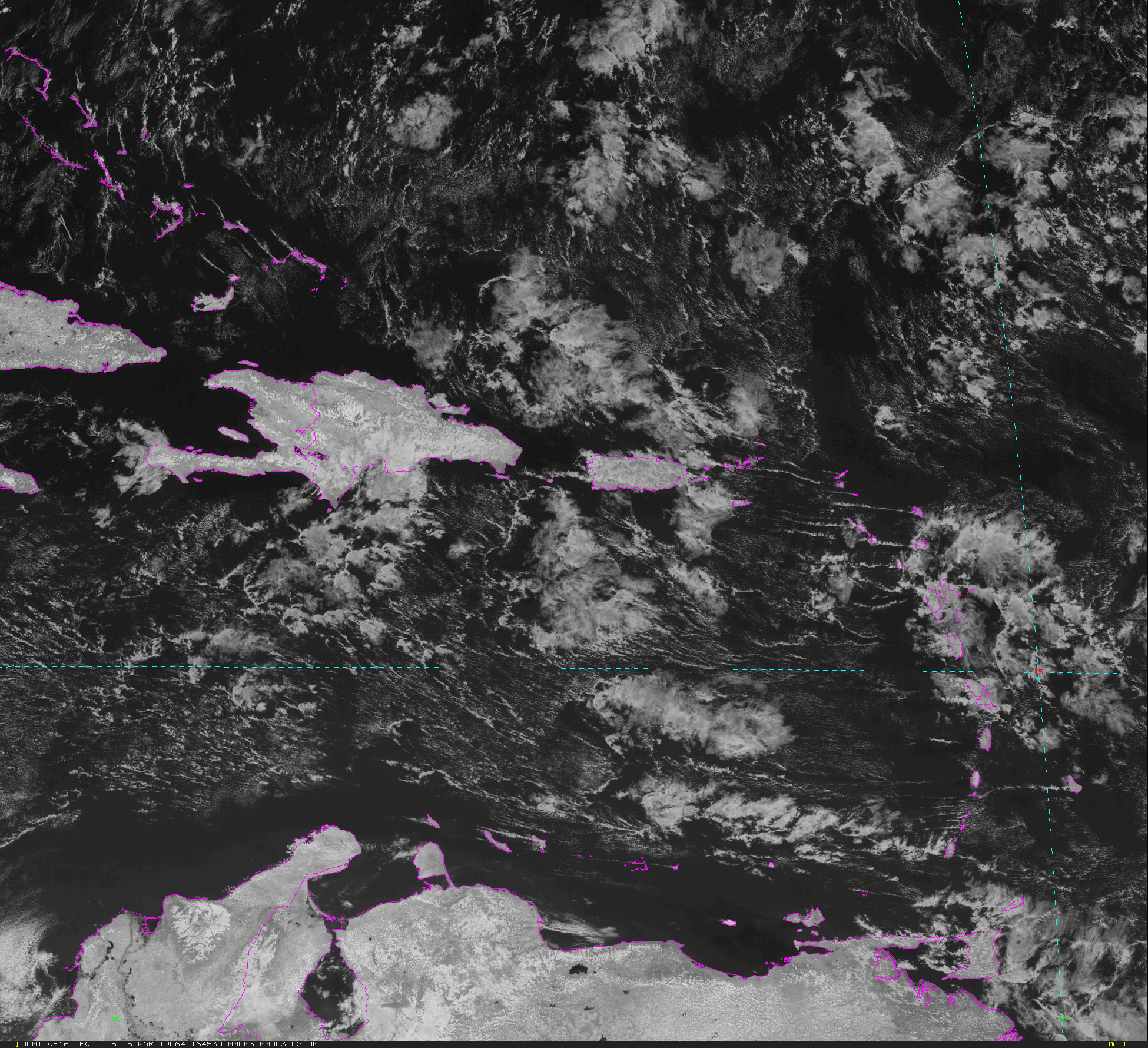

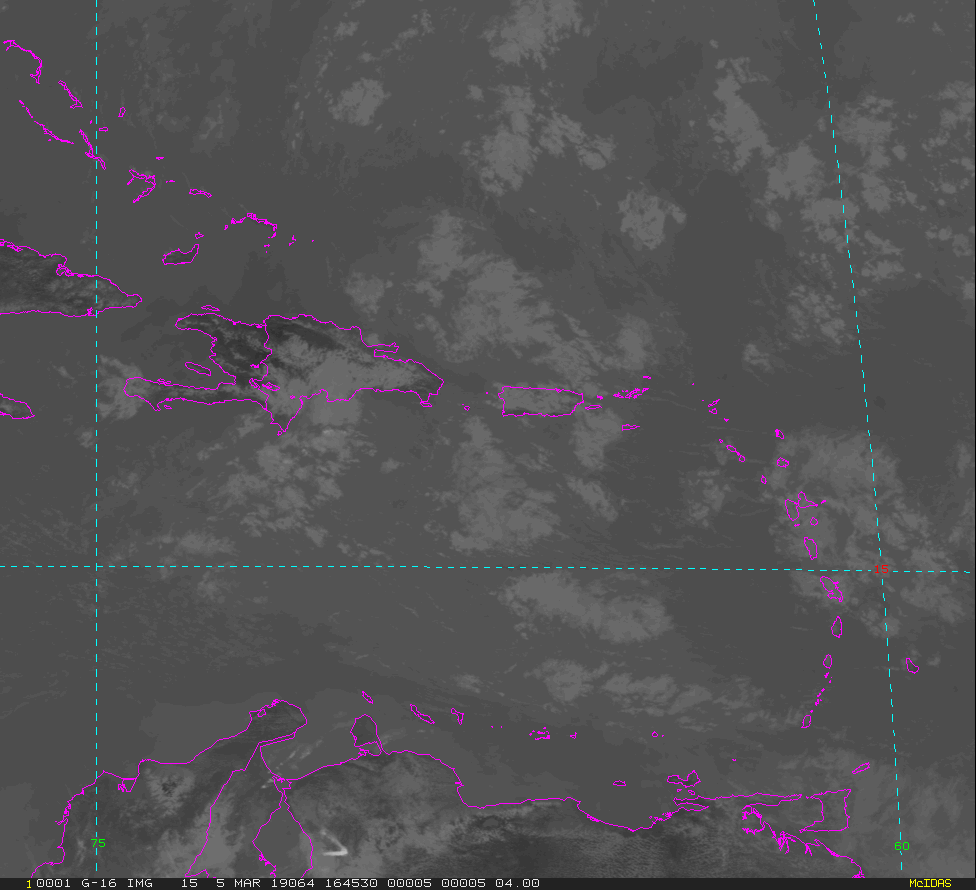

GOES-East Puerto Rico - 15 minute Update Interval Mode 3, 5 minute Update Interval Mode 4, 10 minute Update Interval Mode 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 17N, 68W 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds 17N, 68W 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 17N, 68W 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud 17N, 68W 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow 17N, 68W 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow 17N, 68W 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 17N, 68W 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall 17N, 68W 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall 17N, 68W 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 17N, 68W 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust 17N, 68W 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind 17N, 68W 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud 17N, 68W 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 17N, 68W 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST 17N, 68W 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount 17N, 68W 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/PuertoRico/Channel02/20190221/OR_ABI-L2-CMIPPR-M3C02_G16_s20190522011510_e20190522011510_c20190522011510.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPPR.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/CONUS/Channel16/20190221/OR_ABI-L2-CMIPC-M6C16_G16_s20190522016130_e20190522016130_c20190522016130.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/FullDisk/Channel07/20190221/OR_ABI-L2-CMIPF-M6C07_G16_s20190522010170_e20190522010170_c20190522010170.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/Mesoscale-1/Channel02/20190221/OR_ABI-L2-CMIPM1-M6C02_G16_s20190522015210_e20190522015210_c20190522015210.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/Mesoscale-2/Channel13/20190221/OR_ABI-L2-CMIPM2-M6C13_G16_s20190522014510_e20190522014510_c20190522014510.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/PuertoRico/Channel11/20190221/OR_ABI-L2-CMIPPR-M6C11_G16_s20190522014510_e20190522014510_c20190522014510.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ABI.*G16" upstream_IDD_relay Example LDM pattern-action file FILE action Example LDM pattern-action file L2ProdFile.sh script

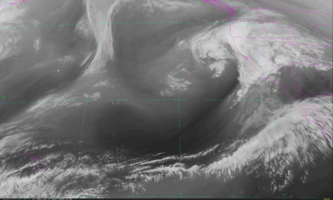

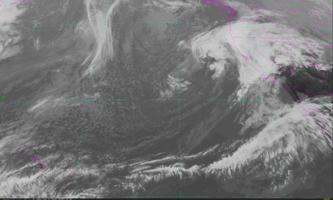

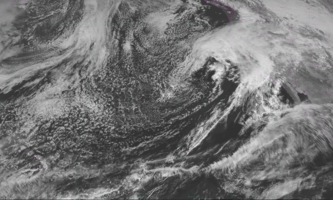

GOES-West CONUS - 5 minute Update Interval for Mode 3 or 6
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 30N, 137W 1.00 3000 x 5000 Band 2 0.64 um VIS clouds fog, insol, winds 30N, 137W 0.50 6000 x10000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 30N, 137W 1.00 3000 x 5000 Band 4 1.37 um Near IR cirrus cloud 30N, 137W 2.00 1500 x 2500 Band 5 1.61 um Near IR cloud phase, snow 30N, 137W 1.00 3000 x 5000 Band 6 2.24 um Near IR land/cloud, vege, snow 30N, 137W 2.00 1500 x 2500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 30N, 137W 2.00 1500 x 2500 Band 8 6.17 um IR High-level WV, winds, rainfall 30N, 137W 2.00 1500 x 2500 Band 9 6.93 um IR Mid-level WV, winds, rainfall 30N, 137W 2.00 1500 x 2500 Band 10 7.34 um IR Lower-level WV, winds & SO2 30N, 137W 2.00 1500 x 2500 Band 11 8.44 um IR Total WV cloud phase, dust 30N, 137W 2.00 1500 x 2500 Band 12 9.61 um IR Total ozone,turbulence,wind 30N, 137W 2.00 1500 x 2500 Band 13 10.3 um IR Surface & cloud 30N, 137W 2.00 1500 x 2500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 30N, 137W 2.00 1500 x 2500 Band 15 12.3 um IR Total water, ash, and SST 30N, 137W 2.00 1500 x 2500 Band 16 13.3 um IR Air temp, cloud height and amount 30N, 137W 2.00 1500 x 2500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES17/CONUS/Products/CloudAndMoistureImagery/CONUS/Channel11/20190221/OR_ABI-L2-CMIPC-M6C11_G17_s20190521946190_e20190521946190_c20190521946190.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
GOES-West Full Disk - 15 minute Update Interval Mode 3, 5 minute Update Interval Mode 4, 10 minute Update Interval Mode 6
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 0N, 137W 6.00 1808 x 1808 Band 2 0.64 um VIS clouds fog, insol, winds 0N, 137W 6.00 1808 x 1808 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 0N, 137W 6.00 1808 x 1808 Band 4 1.37 um Near IR cirrus cloud 0N, 137W 6.00 1808 x 1808 Band 5 1.61 um Near IR cloud phase, snow 0N, 137W 6.00 1808 x 1808 Band 6 2.24 um Near IR land/cloud, vege, snow 0N, 137W 6.00 1808 x 1808 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 0N, 137W 6.00 1808 x 1808 Band 8 6.17 um IR High-level WV, winds, rainfall 0N, 137W 6.00 1808 x 1808 Band 9 6.93 um IR Mid-level WV, winds, rainfall 0N, 137W 6.00 1808 x 1808 Band 10 7.34 um IR Lower-level WV, winds & SO2 0N, 137W 6.00 1808 x 1808 Band 11 8.44 um IR Total WV cloud phase, dust 0N, 137W 6.00 1808 x 1808 Band 12 9.61 um IR Total ozone,turbulence,wind 0N, 137W 6.00 1808 x 1808 Band 13 10.3 um IR Surface & cloud 0N, 137W 6.00 1808 x 1808 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 0N, 137W 6.00 1808 x 1808 Band 15 12.3 um IR Total water, ash, and SST 0N, 137W 6.00 1808 x 1808 Band 16 13.3 um IR Air temp, cloud height and amount 0N, 137W 6.00 1808 x 1808 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/FullDisk/Channel15/20190221/OR_ABI-L2-CMIPF-M6C15_G17_s20190521950340_e20190521950340_c20190521950340.nc
Example LDM configuration file REQUEST lines: REQUEST NIMAGE "CMIPF.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

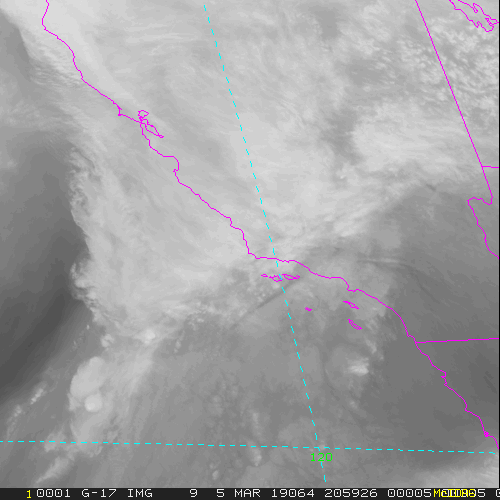

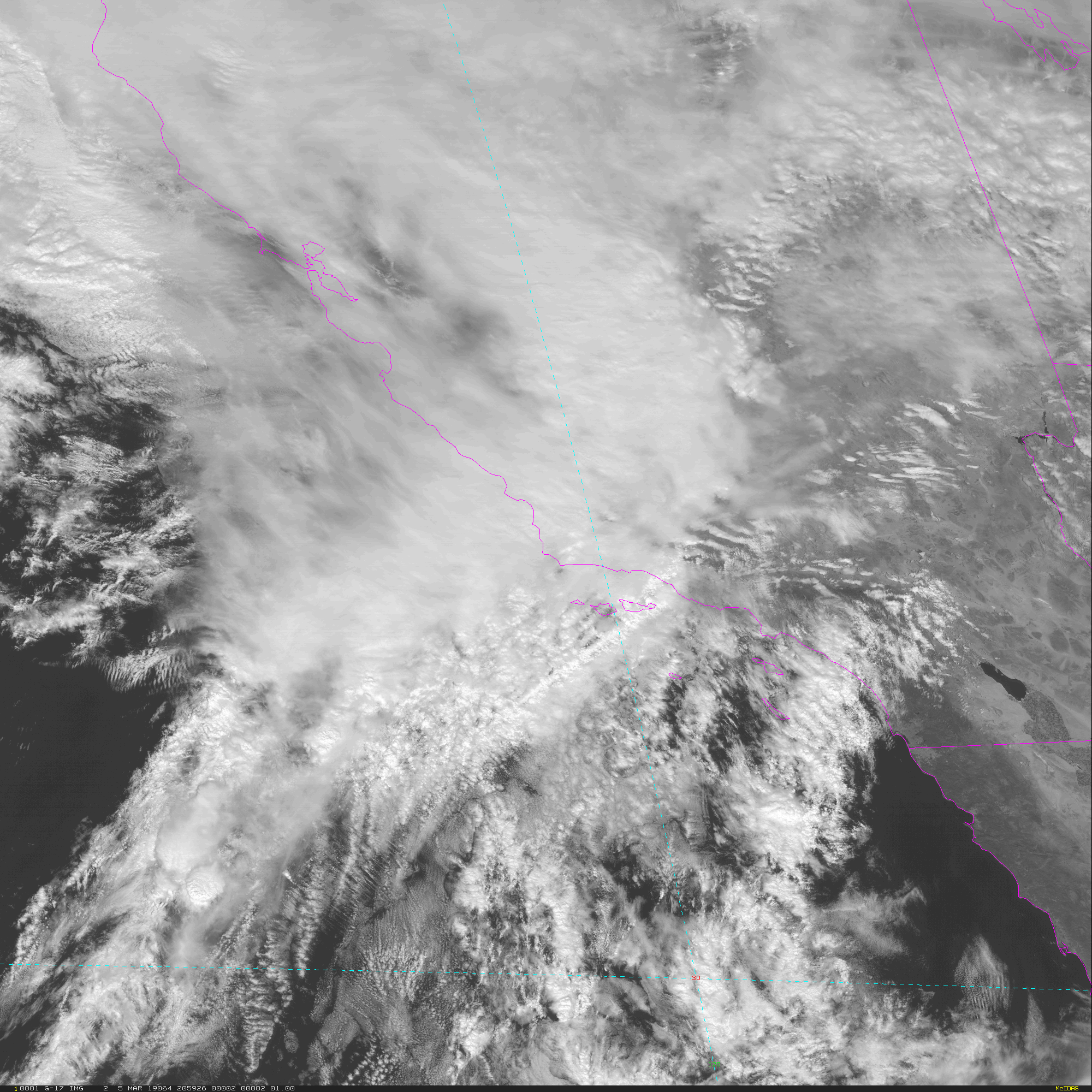

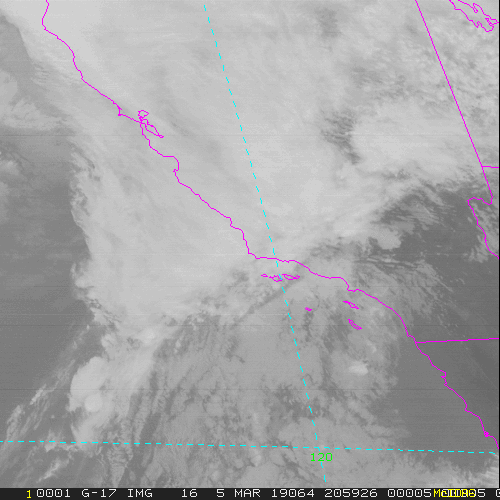

GOES-West Mesoscale-1 - 1 minute Update Interval if 2 Mesoscale Scans otherwise 30 seconds for Mode 3 or 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land var, var 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds var, var 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind var, var 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud var, var 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow var, var 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow var, var 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds var, var 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall var, var 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall var, var 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 var, var 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust var, var 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind var, var 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud var, var 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall var, var 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST var, var 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount var, var 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Mesoscale-1/Channel09/20190221/OR_ABI-L2-CMIPM1-M6C09_G17_s20190521959270_e20190521959270_c20190521959270.nc
Example LDM configuration file REQUEST line: REQUEST SATELLITE "CMIPM1.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

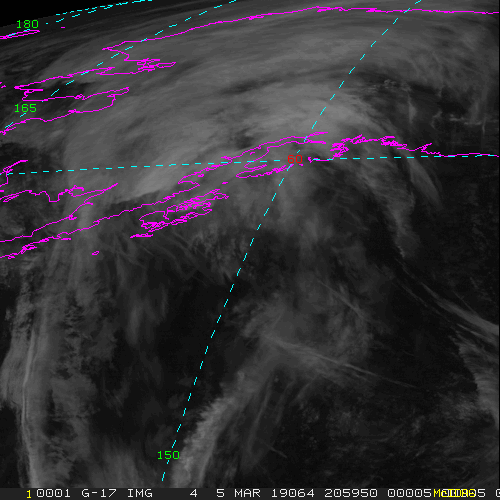

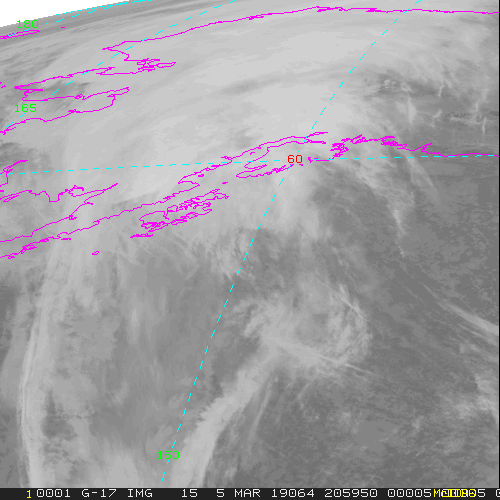

GOES-West Mesoscale-2 - 1 minute Update Interval if 2 Mesoscale Scans otherwise 30 seconds for Mode 3 or 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land var, var 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds var, var 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind var, var 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud var, var 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow var, var 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow var, var 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds var, var 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall var, var 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall var, var 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 var, var 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust var, var 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind var, var 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud var, var 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall var, var 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST var, var 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount var, var 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Mesoscale-2/Channel09/20190221/OR_ABI-L2-CMIPM2-M6C09_G17_s20190522011570_e20190522011570_c20190522011570.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPM2.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

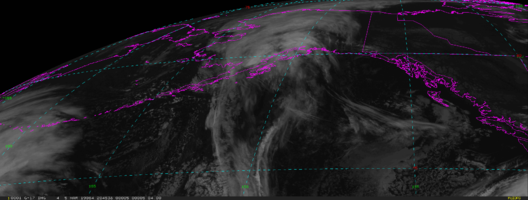

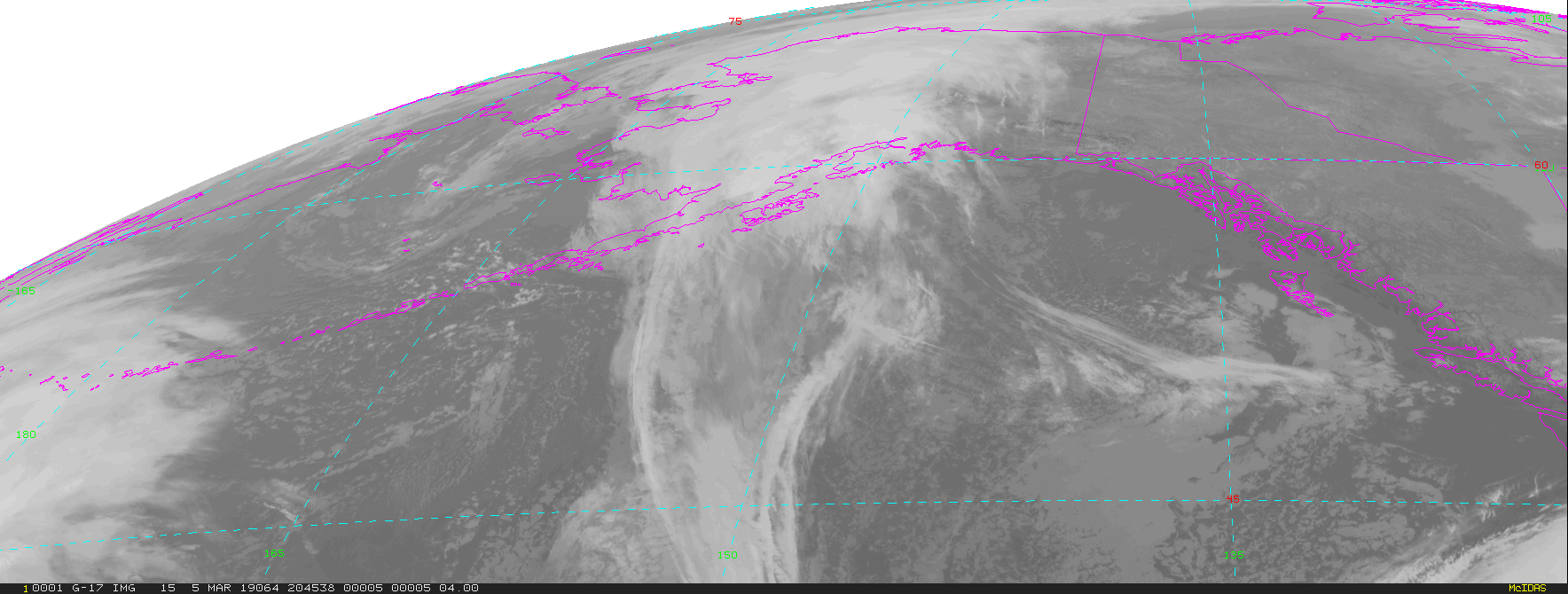

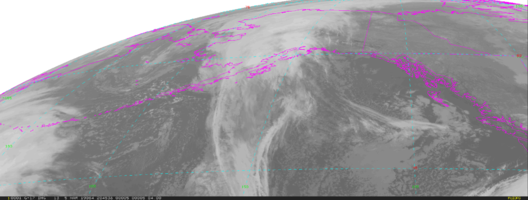

GOES-West Alaska Regional - 15 minute Update Interval Mode 3, 5 minute Update Interval Mode 4, 10 minute Update Interval Mode 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 53N, 151W 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds 53N, 151W 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 53N, 151W 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud 53N, 151W 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow 53N, 151W 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow 53N, 151W 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 53N, 151W 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall 53N, 151W 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall 53N, 151W 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 53N, 151W 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust 53N, 151W 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind 53N, 151W 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud 53N, 151W 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 53N, 151W 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST 53N, 151W 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount 53N, 151W 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Alaska/Channel02/20190221/OR_ABI-L2-CMIPAK-M3C02_G17_s20190522011510_e20190522011510_c20190522011510.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPAK.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

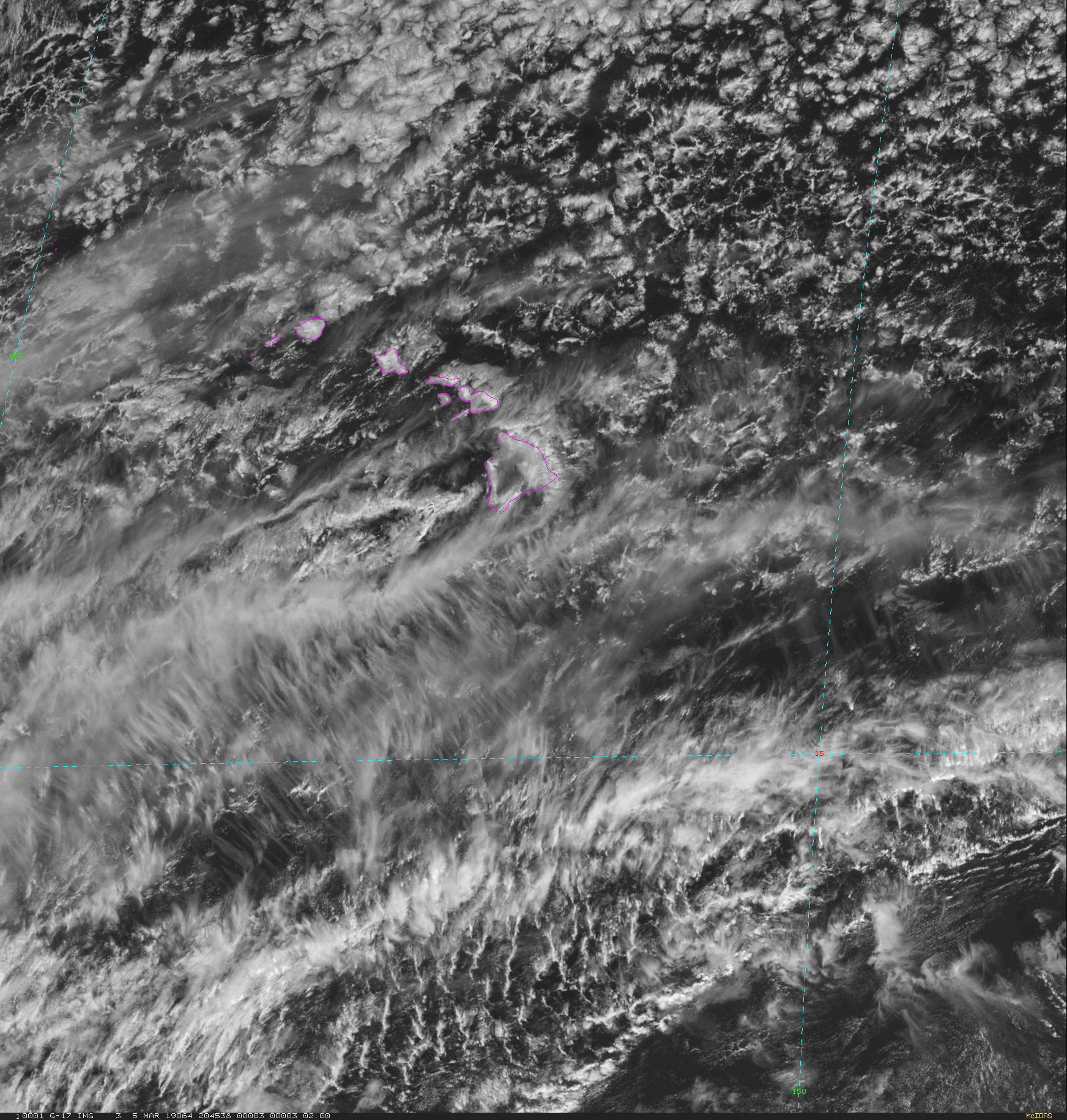

GOES-West Hawaii Regional - 15 minute Update Interval Mode 3, 5 minute Update Interval Mode 4, 10 minute Update Interval Mode 6
NB: thumbnails are links to full resolution images Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.47 um VIS aerosol-over-land 18N, 155W 1.00 1000 x 1000 Band 2 0.64 um VIS clouds fog, insol, winds 18N, 155W 0.50 2000 x 2000 Band 3 0.86 um Near IR veg/burn scar,aerosol, wind 18N, 155W 1.00 1000 x 1000 Band 4 1.37 um Near IR cirrus cloud 18N, 155W 2.00 500 x 500 Band 5 1.61 um Near IR cloud phase, snow 18N, 155W 1.00 1000 x 1000 Band 6 2.24 um Near IR land/cloud, vege, snow 18N, 155W 2.00 500 x 500 Band 7 3.89 um IR Sfc, cloud, fog, fire, winds 18N, 155W 2.00 500 x 500 Band 8 6.17 um IR High-level WV, winds, rainfall 18N, 155W 2.00 500 x 500 Band 9 6.93 um IR Mid-level WV, winds, rainfall 18N, 155W 2.00 500 x 500 Band 10 7.34 um IR Lower-level WV, winds & SO2 18N, 155W 2.00 500 x 500 Band 11 8.44 um IR Total WV cloud phase, dust 18N, 155W 2.00 500 x 500 Band 12 9.61 um IR Total ozone,turbulence,wind 18N, 155W 2.00 500 x 500 Band 13 10.3 um IR Surface & cloud 18N, 155W 2.00 500 x 500 Band 14 11.2 um IR Imagery,SST,clouds,rainfall 18N, 155W 2.00 500 x 500 Band 15 12.3 um IR Total water, ash, and SST 18N, 155W 2.00 500 x 500 Band 16 13.3 um IR Air temp, cloud height and amount 18N, 155W 2.00 500 x 500 Example LDM/IDD Product ID:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudAndMoistureImagery/Hawaii/Channel02/20190221/OR_ABI-L2-CMIPHI-M3C02_G17_s20190522011510_e20190522011510_c20190522011510.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CMIPHI.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/CONUS/Channel14/20190221/OR_ABI-L2-CMIPC-M6C14_G17_s20190522016190_e20190522016190_c20190522016190.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/FullDisk/Channel14/20190221/OR_ABI-L2-CMIPF-M6C14_G17_s20190522010340_e20190522010340_c20190522010340.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Mesoscale-1/Channel03/20190221/OR_ABI-L2-CMIPM1-M6C03_G17_s20190522018270_e20190522018270_c20190522018270.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Mesoscale-2/Channel08/20190221/OR_ABI-L2-CMIPM2-M6C08_G17_s20190522014570_e20190522014570_c20190522014570.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Alaska/Channel04/20190221/OR_ABI-L2-CMIPAK-M3C04_G17_s20190522014570_e20190522014570_c20190522014570.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudAndMoistureImagery/Hawaii/Channel05/20190221/OR_ABI-L2-CMIPHI-M3C05_G17_s20190522014570_e20190522014570_c20190522014570.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ABI.*G17" upstream_IDD_relay Example LDM pattern-action file FILE action Example LDM pattern-action file L2ProdFile.sh script
Aerosol Detection
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Aerosol Detection CONUS 30N, 87W 2.00 1500 x 2500 Aerosol Detection Smoke CONUS 30N, 87W 2.00 1500 x 2500 Aerosol Detection Dust CONUS 30N, 87W 2.00 1500 x 2500 Aerosol Detection Full Disk 0N, 75W 2.00 5424 x 5424 Aerosol Detection Smoke Full Disk 0N, 75W 2.00 5424 x 5424 Aerosol Detection Dust Full Disk 0N, 75W 2.00 5424 x 5424 Aerosol Detection Mesoscale-1 var, var 2.00 500 x 500 Aerosol Detection Smoke Mesoscale-1 var, var 2.00 500 x 500 Aerosol Detection Dust Mesoscale-1 var, var 2.00 500 x 500 Aerosol Detection Mesoscale-2 var, var 2.00 500 x 500 Aerosol Detection Smoke Mesoscale-2 var, var 2.00 500 x 500 Aerosol Detection Dust Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolDetection/CONUS/20190320/OR_ABI-L2-ADPC-M3_G16_s20190791432187_e20190791434560_c20190791435393.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolDetection/FullDisk/20190320/OR_ABI-L2-ADPF-M3_G16_s20190791415366_e20190791426133_c20190791426521.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolDetection/Mesoscale-1/20190320/OR_ABI-L2-ADPM1-M3_G16_s20190791435265_e20190791435323_c20190791435573.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolDetection/Mesoscale-2/20190320/OR_ABI-L2-ADPM2-M3_G16_s20190791435565_e20190791436023_c20190791436374.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ADP.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Aerosol Optical Depth
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Aerosol Optical Depth CONUS 30N, 87W 2.00 1500 x 2500 Aerosol Optical Depth Full Disk 0N, 75W 2.00 5424 x 5424
/data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolOpticalDepth/CONUS/20190320/OR_ABI-L2-AODC-M3_G16_s20190791432187_e20190791434560_c20190791436577.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/AerosolOpticalDepth/FullDisk/20190320/OR_ABI-L2-AODF-M3_G16_s20190791415366_e20190791426133_c20190791429239.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "AOD.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Mask
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Mask CONUS 30N, 87W 2.00 1500 x 2500 Cloud Mask Full Disk 0N, 75W 2.00 5424 x 5424 Cloud Mask Mesoscale-1 var, var 2.00 500 x 500 Cloud Mask Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudMask/CONUS/20190320/OR_ABI-L2-ACMC-M3_G16_s20190791432187_e20190791434560_c20190791435206.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudMask/FullDisk/20190320/OR_ABI-L2-ACMF-M3_G16_s20190791415366_e20190791426133_c20190791426302.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudMask/Mesoscale-1/20190320/OR_ABI-L2-ACMM1-M3_G16_s20190791439265_e20190791439323_c20190791439543.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudMask/Mesoscale-2/20190320/OR_ABI-L2-ACMM2-M3_G16_s20190791438565_e20190791439023_c20190791439232.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ACM.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Optical Depth
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Optical Depth CONUS 30N, 87W 2.00 1500 x 2500 Cloud Optical Depth Full Disk 0N, 75W 4.00 2712 x 2712
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudOpticalDepth/CONUS/20190320/OR_ABI-L2-CODC-M3_G16_s20190791432187_e20190791434560_c20190791436223.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudOpticalDepth/FullDisk/20190320/OR_ABI-L2-CODF-M3_G16_s20190791415366_e20190791426133_c20190791427376.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "COD.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Particle Size
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Particle Size CONUS 30N, 87W 2.00 1500 x 2500 Cloud Particle Size Full Disk 0N, 75W 2.00 5424 x 5424 Cloud Particle Size Mesoscale-1 var, var 2.00 500 x 500 Cloud Particle Size Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudParticleSize/CONUS/20190320/OR_ABI-L2-CPSC-M3_G16_s20190791432187_e20190791434560_c20190791436223.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudParticleSize/FullDisk/20190320/OR_ABI-L2-CPSF-M3_G16_s20190791415366_e20190791426133_c20190791427376.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudParticleSize/Mesoscale-1/20190320/OR_ABI-L2-CPSM1-M3_G16_s20190791438265_e20190791438323_c20190791439415.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudParticleSize/Mesoscale-2/20190320/OR_ABI-L2-CPSM2-M3_G16_s20190791437565_e20190791438023_c20190791439030.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CPS.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Top Height
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Top Height CONUS 30N, 87W 10.00 300 x 500 Cloud Top Height Full Disk 0N, 75W 10.00 1086 x 1086 Cloud Top Height Mesoscale-1 var, var 4.00 250 x 250 Cloud Top Height Mesoscale-2 var, var 4.00 250 x 250
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopHeight/CONUS/20190320/OR_ABI-L2-ACHAC-M3_G16_s20190791432187_e20190791434560_c20190791436127.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopHeight/FullDisk/20190320/OR_ABI-L2-ACHAF-M3_G16_s20190791415366_e20190791426133_c20190791427107.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopHeight/Mesoscale-1/20190320/OR_ABI-L2-ACHAM1-M3_G16_s20190791438265_e20190791438323_c20190791439221.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopHeight/Mesoscale-2/20190320/OR_ABI-L2-ACHAM2-M3_G16_s20190791438565_e20190791439023_c20190791439522.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ACHA.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Top Phase
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Top Phase CONUS 30N, 87W 2.00 1500 x 2500 Cloud Top Phase Full Disk 0N, 75W 2.00 5424 x 5424 Cloud Top Phase Mesoscale-1 var, var 2.00 500 x 500 Cloud Top Phase Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPhase/CONUS/20190320/OR_ABI-L2-ACTPC-M3_G16_s20190791432187_e20190791434560_c20190791435335.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPhase/FullDisk/20190320/OR_ABI-L2-ACTPF-M6_G16_s20190791420341_e20190791429408_c20190791430065.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPhase/Mesoscale-1/20190320/OR_ABI-L2-ACTPM1-M3_G16_s20190791438265_e20190791438323_c20190791439008.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPhase/Mesoscale-2/20190320/OR_ABI-L2-ACTPM2-M3_G16_s20190791438565_e20190791439023_c20190791439345.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ACTP.*G16" upstream_IDD_relay
Cloud Top Pressure
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Top Pressure CONUS 30N, 87W 10.00 300 x 500 Cloud Top Pressure Full Disk 0N, 75W 10.00 1086 x 1086
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPressure/CONUS/20190320/OR_ABI-L2-CTPC-M3_G16_s20190791432187_e20190791434560_c20190791436127.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopPressure/FullDisk/20190320/OR_ABI-L2-CTPF-M6_G16_s20190791420341_e20190791429408_c20190791430278.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "CTP.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Cloud Top Temperature
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Cloud Top Temperature Full Disk 0N, 75W 2.00 5424 x 5424 Cloud Top Temperature Mesoscale-1 var, var 2.00 500 x 500 Cloud Top Temperature Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopTemperature/FullDisk/20190320/OR_ABI-L2-ACHTF-M3_G16_s20190791415366_e20190791426133_c20190791427108.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopTemperature/Mesoscale-1/20190320/OR_ABI-L2-ACHTM1-M3_G16_s20190791438265_e20190791438323_c20190791439222.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudTopTemperature/Mesoscale-2/20190320/OR_ABI-L2-ACHTM2-M3_G16_s20190791438565_e20190791439023_c20190791439523.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "ACHT.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Derived Stability Indicies
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Lifted Index CONUS 30N, 87W 10.00 300 x 500 CAPE CONUS 30N, 87W 10.00 300 x 500 Total Totals Index CONUS 30N, 87W 10.00 300 x 500 Showalter Index CONUS 30N, 87W 10.00 300 x 500 K-Index CONUS 30N, 87W 10.00 300 x 500 Lifted Index Full Disk 0N, 75W 10.00 1086 x 1086 CAPE Full Disk 0N, 75W 10.00 1086 x 1086 Total Totals Index Full Disk 0N, 75W 10.00 1086 x 1086 Showalter Index Full Disk 0N, 75W 10.00 1086 x 1086 K-Index Full Disk 0N, 75W 10.00 1086 x 1086 Lifted Index Mesoscale-1 var, var 10.00 100 x 100 CAPE Mesoscale-1 var, var 10.00 100 x 100 Total Totals Index Mesoscale-1 var, var 10.00 100 x 100 Showalter Index Mesoscale-1 var, var 10.00 100 x 100 K-Index Mesoscale-1 var, var 10.00 100 x 100 Lifted Index Mesoscale-2 var, var 10.00 100 x 100 CAPE Mesoscale-2 var, var 10.00 100 x 100 Total Totals Index Mesoscale-2 var, var 10.00 100 x 100 Showalter Index Mesoscale-2 var, var 10.00 100 x 100 K-Index Mesoscale-2 var, var 10.00 100 x 100
/data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedStabilityIndices/CONUS/20190320/OR_ABI-L2-DSIC-M3_G16_s20190791432187_e20190791434560_c20190791436230.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedStabilityIndices/FullDisk/20190320/OR_ABI-L2-DSIF-M6_G16_s20190791420341_e20190791429408_c20190791430225.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedStabilityIndices/Mesoscale-1/20190320/OR_ABI-L2-DSIM1-M3_G16_s20190791438265_e20190791438323_c20190791439188.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedStabilityIndices/Mesoscale-2/20190320/OR_ABI-L2-DSIM2-M3_G16_s20190791437565_e20190791438023_c20190791439014.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "DSI.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Fire Detection
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Fire Detection Area CONUS 30N, 87W 2.00 1500 x 2450 Fire Detection Temp CONUS 30N, 87W 2.00 1500 x 2450 Fire Detection Mask CONUS 30N, 87W 2.00 1500 x 2450 Fire Detection Power CONUS 30N, 87W 2.00 1500 x 2450 Fire Detection Area Full Disk 0N, 75W 2.00 5424 x 5424 Fire Detection Temp Full Disk 0N, 75W 2.00 5424 x 5424 Fire Detection Mask Full Disk 0N, 75W 2.00 5424 x 5424 Fire Detection Power Full Disk 0N, 75W 2.00 5424 x 5424
/data/ldm/pub/native/satellite/GOES/GOES16/Products/FireHotSpot/CONUS/20190320/OR_ABI-L2-FDCC-M3_G16_s20190791432187_e20190791434560_c20190791435146.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/FireHotSpot/FullDisk/20190320/OR_ABI-L2-FDCF-M3_G16_s20190791415366_e20190791426133_c20190791426242.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "FDC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Fog and Low Stratus
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Fog Probability CONUS 30N, 87W 1.00 3000 x 5000 IFR Fog Probability Full Disk 30N, 87W 1.00 3000 x 5000 LIFR Fog Probability Mesoscale-1 30N, 87W 1.00 3000 x 5000 MVFR Fog Probability Mesoscale-2 30N, 87W 1.00 3000 x 5000
/data/ldm/pub/native/satellite/GOES/GOES16/Products/FogLowStratus/CONUS/20210327OR_ABI-L2-GFLSC-M6_G16_s20210861531137_e20210861533510_c20210861534344.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "GFLSC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Land Surface Temperature
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Land Surface Temperature CONUS 30N, 87W 2.00 1500 x 2500 Land Surface Temperature Full Disk 0N, 75W 10.00 1086 x 1086 Land Surface Temperature Mesoscale-1 var, var 2.00 500 x 500 Land Surface Temperature Mesoscale-2 var, var 2.00 500 x 500
/data/ldm/pub/native/satellite/GOES/GOES16/Products/LandSurfaceTemperature/CONUS/20190320/OR_ABI-L2-LSTC-M3_G16_s20190791402187_e20190791404560_c20190791405229.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/LandSurfaceTemperature/FullDisk/20190320/OR_ABI-L2-LSTF-M3_G16_s20190791400366_e20190791411133_c20190791411402.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "LST.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Rain Rate QPE
|
Example LDM/IDD Product ID:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Rain Rate QPE Full Disk 0N, 75W 2.00 5424 x 5424
/data/ldm/pub/native/satellite/GOES/GOES16/Products/RainRateQPE/FullDisk/20190320/OR_ABI-L2-RRQPEF-M6_G16_s20190791430341_e20190791439408_c20190791439486.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "RRQPE.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Sea Surface Temperature
|
Example LDM/IDD Product ID:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Sea Surface Temperature Full Disk 0N, 75W 2.00 5424 x 5424
/data/ldm/pub/native/satellite/GOES/GOES16/Products/SeaSurfaceTemperature/FullDisk/20190320/OR_ABI-L2-SSTF-M6_G16_s20190791430341_e20190791439408_c20190791439486.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "SST.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Total Precipitable Water
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Total Precipitable Water CONUS 30N, 87W 10.00 300 x 500 Total Precipitable Water Full Disk 0N, 75W 10.00 1086 x 1086 Total Precipitable Water Mesoscale-1 var, var 2.00 100 x 100 Total Precipitable Water Mesoscale-2 var, var 2.00 100 x 100
/data/ldm/pub/native/satellite/GOES/GOES16/Products/TotalPrecipitableWater/CONUS/20190320/OR_ABI-L2-TPWC-M3_G16_s20190791432187_e20190791434560_c20190791436230.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/TotalPrecipitableWater/FullDisk/20190320/OR_ABI-L2-TPWF-M6_G16_s20190791420341_e20190791429408_c20190791430225.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/TotalPrecipitableWater/Mesoscale-1/20190320/OR_ABI-L2-TPWM1-M3_G16_s20190791438265_e20190791438323_c20190791439188.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/TotalPrecipitableWater/Mesoscale-2/20190320/OR_ABI-L2-TPWM2-M3_G16_s20190791437565_e20190791438023_c20190791439014.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "TPW.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Volcanic Ash
|
|
Example LDM/IDD Product ID:NB: thumbnails are links to full resolution images Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Volcanic Ash Height Full Disk 0N, 75W 2.00 5424 x 5424 Volcanic Ash Mass Loading Full Disk 0N, 75W 2.00 5424 x 5424
/data/ldm/pub/native/satellite/GOES/GOES16/Products/VolcanicAshDetection/FullDisk/20190320/OR_ABI-L2-VAAF-M3_G16_s20190791415366_e20190791426133_c20190791427126.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "VAA.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Legacy Vertical Profiles
Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] --------------------------------+------------+-----------------+-----------------+----------------------- Legacy Vertical Moisture Profile CONUS 30N, 87W 10.00 300 x 500 Legacy Vertical Temp. Profile CONUS 30N, 87W 10.00 300 x 500Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/LegacyVerticalMoistureProfile/CONUS/20190320/OR_ABI-L2-LVMPC-M3_G16_s20190791422187_e20190791424560_c20190791426217.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/LegacyVerticalTemperatureProfile/CONUS/20190320/OR_ABI-L2-LVTPC-M3_G16_s20190791422187_e20190791424560_c20190791426217.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "LV.P.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Derived Motion Winds
Description Coverage Central Lat, Lon Resolution [km] Size [Lines x Elements] -------------------------+------------------+-----------------+-----------------+----------------------- Derived Motion Winds CONUS 30N, 87W 2.00 1500 x 2500Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel02/20190320/OR_ABI-L2-DMWC-M3C02_G16_s20190791417187_e20190791419560_c20190791427096.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel07/20190320/OR_ABI-L2-DMWC-M3C07_G16_s20190791417187_e20190791419572_c20190791426258.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel08/20190320/OR_ABI-L2-DMWC-M3C08_G16_s20190791417187_e20190791419560_c20190791426289.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel09/20190320/OR_ABI-L2-DMWC-M3C09_G16_s20190791402187_e20190791404565_c20190791436420.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel10/20190320/OR_ABI-L2-DMWC-M3C10_G16_s20190791402187_e20190791404571_c20190791436386.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/CONUS/Channel14/20190320/OR_ABI-L2-DMWC-M3C14_G16_s20190791417187_e20190791419560_c20190791426454.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel02/20190320/OR_ABI-L2-DMWM1-M3C02_G16_s20190791430265_e20190791430323_c20190791436574.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel07/20190320/OR_ABI-L2-DMWM1-M3C07_G16_s20190791425265_e20190791425334_c20190791431292.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel08/20190320/OR_ABI-L2-DMWM1-M3C08_G16_s20190791430265_e20190791430323_c20190791436344.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel09/20190320/OR_ABI-L2-DMWM1-M3C09_G16_s20190791405265_e20190791405328_c20190791436351.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel10/20190320/OR_ABI-L2-DMWM1-M3C10_G16_s20190791405265_e20190791405334_c20190791436346.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-1/Channel14/20190320/OR_ABI-L2-DMWM1-M3C14_G16_s20190791430265_e20190791430323_c20190791436360.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel02/20190320/OR_ABI-L2-DMWM2-M3C02_G16_s20190791430565_e20190791431023_c20190791437371.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel07/20190320/OR_ABI-L2-DMWM2-M3C07_G16_s20190791430565_e20190791431035_c20190791437105.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel08/20190320/OR_ABI-L2-DMWM2-M3C08_G16_s20190791430565_e20190791431023_c20190791437106.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel09/20190320/OR_ABI-L2-DMWM2-M3C09_G16_s20190791400565_e20190791401028_c20190791431592.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel10/20190320/OR_ABI-L2-DMWM2-M3C10_G16_s20190791405565_e20190791406035_c20190791437118.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DerivedMotionWinds/Mesoscale-2/Channel14/20190320/OR_ABI-L2-DMWM2-M3C14_G16_s20190791430565_e20190791431023_c20190791437117.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "DMW.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
CIRA CLDSNOW East CONUS - 5 minute Update Interval for Mode 3 or 6
Cloud Snow (Ref: AMS Journal of Applied Meteorology and Climatology.
These imagery-based enhancements of snow cover, clouds, and background
use the full spatial resolution capabilities of the sensors onboard
satellites. First developed using color-composite techniques to analyze
cloud/snow fields using the multispectral Earth Observation System
(EOS) Moderate Resolution Imaging Spectroradiometer (MODIS)
daytime observations, this technique was extended to use scans from the
ABI instrument onboard GOES-R series satellites.
|
|
|
|
Example LDM/IDD Product IDs:NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 Cloud Snow Channel 01 East CONUS 30N, 87W 1.00 3000 x 5000 Band 2 Cloud Snow Channel 02 East CONUS 30N, 87W 1.00 3000 x 5000 Band 3 Cloud Snow Channel 03 East CONUS 30N, 87W 1.00 3000 x 5000
/data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudSnow/CONUS/Channel01/20210326/OR_ABI-L2-SNCLC-M3C01_G16_s20210852241140_e20210852241140_c20210852241140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudSnow/CONUS/Channel02/20210326/OR_ABI-L2-SNCLC-M3C02_G16_s20210852241140_e20210852241140_c20210852241140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/CloudSnow/CONUS/Channel03/20210326/OR_ABI-L2-SNCLC-M3C03_G16_s20210852241140_e20210852241140_c20210852241140.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "SNCLC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
CIRA DRDUST East CONUS - 5 minute Update Interval for Mode 3 or 6
Dynamic Enhancement Background Reduction Algorithm (DEBRA)
(Ref: AGU JGR Atmospheres)
DEBRA is applicable to multispectral satellite imaging radiometers. DEBRA
uses ancillary information about the clear‐sky background to reduce
false detections of atmospheric parameters in complex scenes. In this
application of the detection of lofted dust, DEBRA uses a surface
emissivity database coupled with a climatological database of surface
temperature to approximate the clear‐sky equivalent signal for selected
infrared‐based multispectral dust detection tests.
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 DBR Dust Channel 01 East CONUS 30N, 87W 1.00 3000 x 5000 Band 2 DBR Dust Channel 02 East CONUS 30N, 87W 1.00 3000 x 5000 Band 3 DBR Dust Channel 03 East CONUS 30N, 87W 1.00 3000 x 5000 Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/DebraDust/CONUS/Channel01/20210326/OR_ABI-L2-DDSTC-M3C01_G16_s20210850726140_e20210850726140_c20210850726140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DebraDust/CONUS/Channel02/20210326/OR_ABI-L2-DDSTC-M3C02_G16_s20210850726140_e20210850726140_c20210850726140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/DebraDust/CONUS/Channel03/20210326/OR_ABI-L2-DDSTC-M3C03_G16_s20210850726140_e20210850726140_c20210850726140.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "DDSTC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
CIRA GEOCOL East CONUS - 5 minute Update Interval for Mode 3 or 6
GeoColor: A Blending Technique for Satellite Imagery
(AMS Journal of Atmospheric and Oceanic Technology)
GeoColor is an application of the technique of dynamic blended imagery,
based on spatially variant transparency factors whose values are tied to
algorithmically isolated parameters. These images are an application
of Geostationary Operational Environmental Satellite R (GOES-R) series
Advanced Baseline Imager (ABI) images supporting operational forecasting
and used widely in public communication of weather information.
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 GeoColor Channel 01 East CONUS 30N, 87W 1.00 3000 x 5000 Band 2 GeoColor Channel 02 East CONUS 30N, 87W 1.00 3000 x 5000 Band 3 GeoColor Channel 03 East CONUS 30N, 87W 1.00 3000 x 5000 Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES16/Products/GeoColor/CONUS/Channel01/20210326/OR_ABI-L2-GEOCC-M3C01_G16_s20210852306140_e20210852306140_c20210852306140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/GeoColor/CONUS/Channel02/20210326/OR_ABI-L2-GEOCC-M3C02_G16_s20210852306140_e20210852306140_c20210852306140.nc /data/ldm/pub/native/satellite/GOES/GOES16/Products/GeoColor/CONUS/Channel03/20210326/OR_ABI-L2-GEOCC-M3C03_G16_s20210852306140_e20210852306140_c20210852306140.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "GEOCC.*G16" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

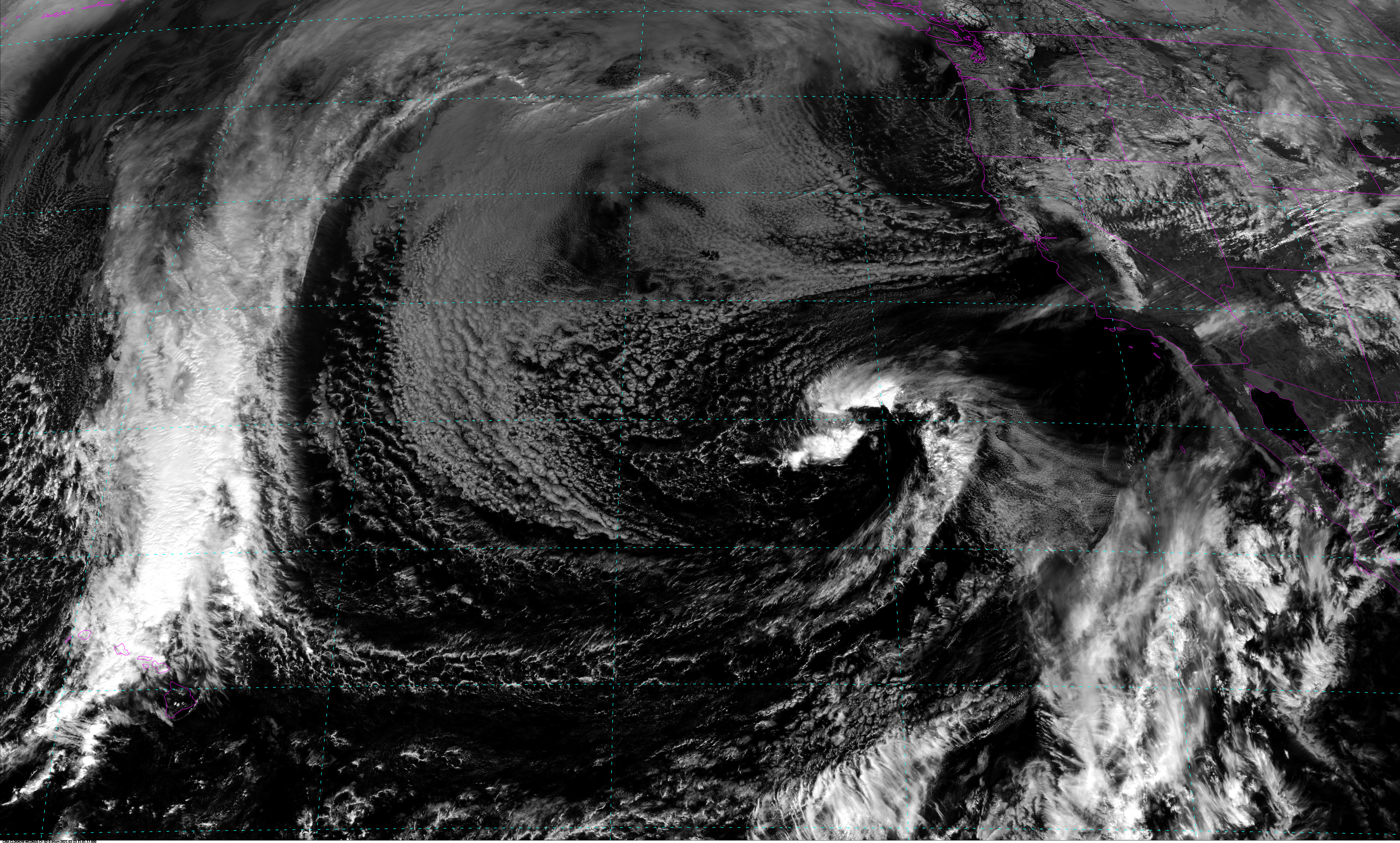

CIRA CLDSNOW West CONUS - 5 minute Update Interval for Mode 3 or 6
Cloud Snow (AMS Journal of Applied Meteorology and Climatology.
These imagery-based enhancements of snow cover, clouds, and background
use the full spatial resolution capabilities of the sensors onboard
satellites. First developed using color-composite techniques to analyze
cloud/snow fields using the multispectral Earth Observation System
(EOS) Moderate Resolution Imaging Spectroradiometer (MODIS)
daytime observations, this technique was extended to use scans from the
ABI instrument onboard GOES-R series satellites.
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 Cloud Snow Channel 01 West CONUS 30N, 137W 1.00 3000 x 5000 Band 2 Cloud Snow Channel 02 West CONUS 30N, 137W 1.00 3000 x 5000 Band 3 Cloud Snow Channel 03 West CONUS 30N, 137W 1.00 3000 x 5000 Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudSnow/CONUS/Channel01/20210327/OR_ABI-L2-SNCLC-M3C01_G17_s20210861456170_e20210861456170_c20210861456170.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudSnow/CONUS/Channel02/20210327/OR_ABI-L2-SNCLC-M3C02_G17_s20210861456170_e20210861456170_c20210861456170.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/CloudSnow/CONUS/Channel03/20210327/OR_ABI-L2-SNCLC-M3C03_G17_s20210861456170_e20210861456170_c20210861456170.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "SNCLC.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script

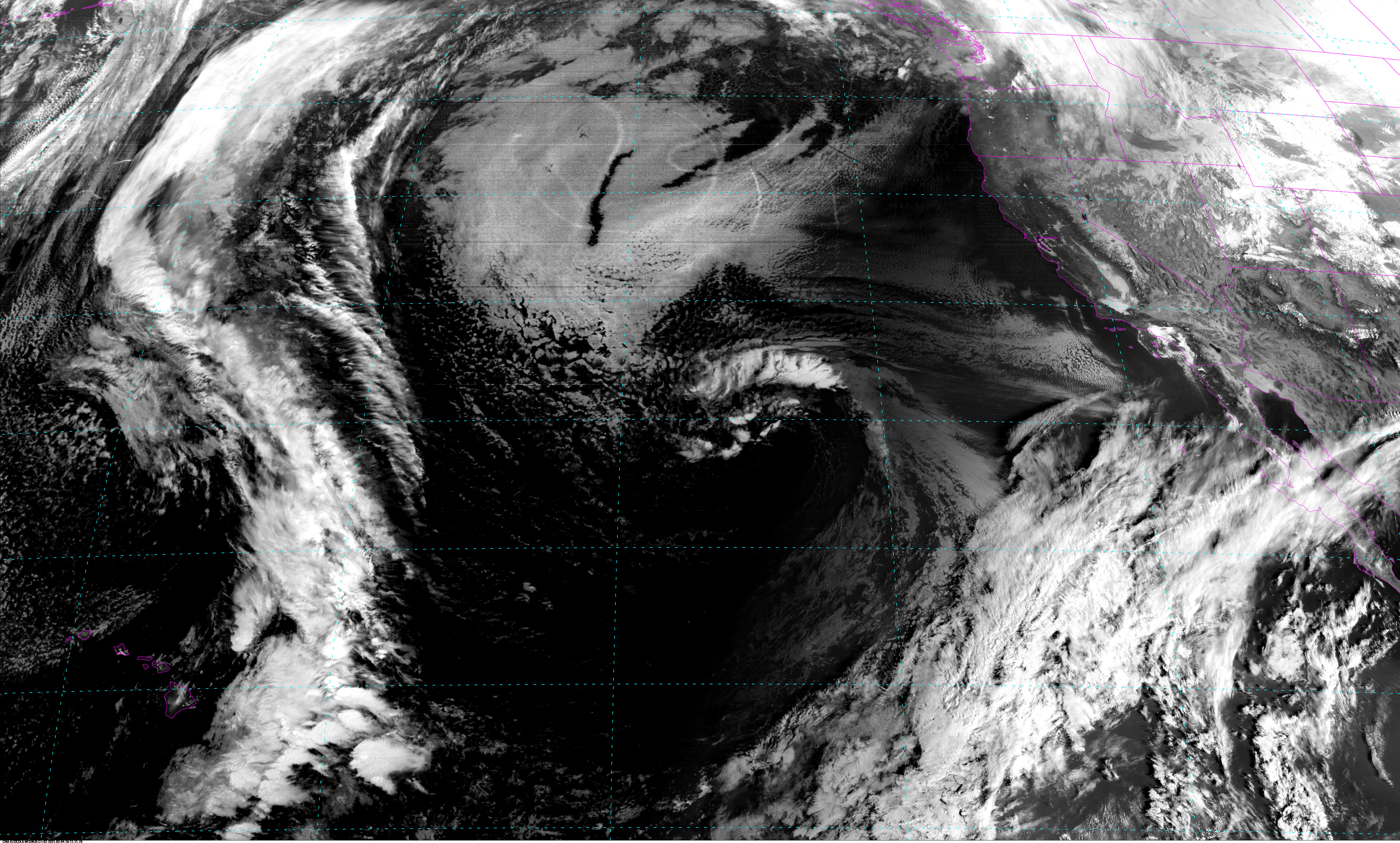

CIRA GEOCOL West CONUS - 5 minute Update Interval for Mode 3 or 6
GeoColor: A Blending Technique for Satellite Imagery (AMS Journal of Atmospheric and Oceanic Technology)
GeoColor is an application of the technique of dynamic blended imagery, based on spatially variant transparency factors whose values are tied to algorithmically isolated parameters. These images are an application of Geostationary Operational Environmental Satellite R (GOES-R) series Advanced Baseline Imager (ABI) images supporting operational forecasting and used widely in public communication of weather information.
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 GeoColor Channel 01 West CONUS 30N, 137W 0.50 6000 x10000 Band 2 GeoColor Channel 02 West CONUS 30N, 137W 0.50 6000 x10000 Band 3 GeoColor Channel 03 West CONUS 30N, 137W 0.50 6000 x10000 Example LDM/IDD Product IDs:
/data/ldm/pub/native/satellite/GOES/GOES17/Products/GeoColor/CONUS/Channel01/20210327/OR_ABI-L2-GEOCC-M3C01_G17_s20210861501170_e20210861501170_c20210861501170.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/GeoColor/CONUS/Channel02/20210327/OR_ABI-L2-GEOCC-M3C02_G17_s20210861501170_e20210861501170_c20210861501170.nc /data/ldm/pub/native/satellite/GOES/GOES17/Products/GeoColor/CONUS/Channel03/20210327/OR_ABI-L2-GEOCC-M3C03_G17_s20210861501170_e20210861501170_c20210861501170.nc
Example LDM configuration file REQUEST line: REQUEST NIMAGE "GEOCC.*G17" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file L2ProdFile.sh script
Instrument Description -----------+------------------------------------------------------------------ GVAR GOES VARiable - 5 imager wavelength channels

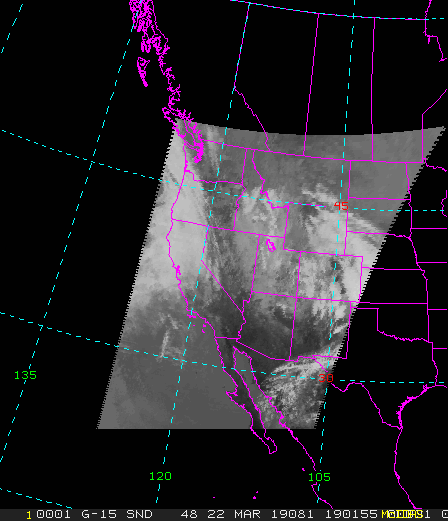

West CONUS - Update Interval varies by product
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.62 um VIS Cloud and Surface Feature 39N, 117W 1.00 5120 x 4400 Band 2 3.9 um IR Low Cloud/Fog,Fire Detection 39N, 118W 4.00 1280 x 1100 Band 3 6.5 um IR Mid-level Water Vapor 39N, 118W 4.00 1280 x 1100 Band 4 10.7 um IR Surface/Cloud-top Temp 39N, 118W 4.00 1280 x 1100 Band 6 13.3 um IR CO2, Cloud Heights 39N, 118W 4.00 1280 x 1100 Band X 1 km Low Cloud Base Product 39N, 118W 4.00 1280 x 1100 Sounder - VIS 39N, 118W 9.70 521 x 448 Sounder - 3.98 um 39N, 118W 9.70 521 x 448 Sounder - 4.45 um 39N, 118W 9.70 521 x 448 Sounder - 6.51 um 39N, 118W 9.70 521 x 448 Sounder - 7.02 um 39N, 118W 9.70 521 x 448 Sounder - 7.43 um 39N, 118W 9.70 521 x 448 Sounder - 11.03 um 39N, 118W 9.70 521 x 448 Sounder - 14.06 um 39N, 118W 9.70 521 x 448 Example LDM/IDD Product ID:s
satz/ch2/GOES-15/VIS/20190321 1700/WEST-CONUS/1km/ TIGW01 KNES 211700 satz/ch2/GOES-15/3.9/20190321 1700/WEST-CONUS/4km/ TIGW04 KNES 211700 satz/ch2/GOES-15/WV/20190321 1700/WEST-CONUS/4km/ TIGW05 KNES 211700 satz/ch2/GOES-15/IR/20190321 1700/WEST-CONUS/4km/ TIGW02 KNES 211700 satz/ch2/GOES-15/13.3/20190321 1700/WEST-CONUS/4km/ TIGW06 KNES 211700 satz/ch2/GOES-15/SOUND-VIS/20190322 1901/WEST-CONUS/10km/ TIGW59 KNES 221901 satz/ch2/GOES-15/SOUND-4.45/20190322 1901/WEST-CONUS/10km/ TIGW55 KNES 221901 satz/ch2/GOES-15/SOUND-3.98/20190322 1901/WEST-CONUS/10km/ TIGW57 KNES 221901 satz/ch2/GOES-15/SOUND-6.51/20190322 1901/WEST-CONUS/10km/ TIGW52 KNES 221901 satz/ch2/GOES-15/SOUND-7.02/20190322 1901/WEST-CONUS/10km/ TIGW51 KNES 221901 satz/ch2/GOES-15/SOUND-7.43/20190322 1901/WEST-CONUS/10km/ TIGW50 KNES 221901 satz/ch2/GOES-15/SOUND-11.03/20190322 1901/WEST-CONUS/10km/ TIGW48 KNES 221901 satz/ch2/GOES-15/SOUND-14.06/20190322 1901/WEST-CONUS/10km/ TIGW43 KNES 221901
Example LDM configuration file REQUEST line: REQUEST NIMAGE "WEST-CONUS" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file ldmfile.sh script
Super National - Update Interval varies by product
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.62 um VIS Cloud and Surface Feature 50N, 105W 7.50 1008 x 1536 Band 2 3.9 um IR Low Cloud/Fog,Fire Detection 50N, 105W 7.50 1008 x 1536 Band 4 10.7 um IR Surface/Cloud-top Temp 50N, 105W 7.50 1008 x 1536 Band X Sounder Cloud Product 50N, 105W 7.50 1008 x 1536 Band X Sounder Cloud Top Pressure Product 50N, 105W 7.50 1008 x 1536 Band X Sounder Lifted Index Product 50N, 105W 7.50 1008 x 1536 Band X Sounder Rainfall Rate Product 50N, 105W 15.00 504 x 768 Band X Sounder Precipitable Water Product 50N, 105W 7.50 1008 x 1536 Band X Sounder Surface Skin Temperature Product 50N, 105W 7.50 1008 x 1536 Band X Sounder Total Precipitable Water Product 50N, 105W 15.00 504 x 768 Example LDM/IDD Product IDs:
satz/ch2/GOES-15/VIS/20190321 1630/SUPER-NATIONAL/8km/ TIGN01 KNES 211630 satz/ch2/GOES-15/WV/20190321 1630/SUPER-NATIONAL/8km/ TIGN05 KNES 211630 satz/ch2/GOES-15/IR/20190321 1630/SUPER-NATIONAL/8km/ TIGN02 KNES 211630 satz/ch1/COMP/CLD/20190321 1600/SUPER-NATIONAL/1km/ TIGN28 KNES 211600 satz/ch1/COMP/CTP/20190321 1600/SUPER-NATIONAL/1km/ TIGN27 KNES 211600 satz/ch1/COMP/LI/20190321 1600/SUPER-NATIONAL/1km/ TIGN16 KNES 211600 satz/ch1/POES/PRXX/20190321 1426/SUPER-NATIONAL/1km/ TITN29 KNES 211426 satz/ch1/COMP/PW/20190321 1600/SUPER-NATIONAL/1km/ TIGN17 KNES 211600 satz/ch1/COMP/SFC-T/20190321 1600/SUPER-NATIONAL/1km/ TIGN18 KNES 211600 satz/ch1/MISC/60/20190321 1521/SUPER-NATIONAL/1km/ TICN60 KNES 211521
Example LDM configuration file REQUEST line: REQUEST NIMAGE "SUPER-NATIONAL" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file ldmfile.sh script
Composites - Update Interval varies by product
|
|
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.62 um VIS Cloud and Surface Feature 90N, 75E 25.60 1024 x 1024 Band 3 6.5 um IR Mid-level Water Vapor 90N, 75E 25.60 1024 x 1024 Band 4 10.7 um IR Surface/Cloud-top Temp 90N, 75E 25.60 1024 x 1024 Band 1 0.62 um VIS Cloud and Surface Feature 36N, 105W 20.30 512 x 1024 Band 3 6.5 um IR Mid-level Water Vapor 36N, 105W 20.30 512 x 1024 Band 4 10.7 um IR Surface/Cloud-top Temp 36N, 105W 20.30 512 x 1024 Example LDM/IDD Product ID:s
satz/ch2/GOES-15/VIS/20190321 1630/NHEM-COMP/24km/ TIGF01 KNES 211630 satz/ch2/GOES-15/WV/20190321 1630/NHEM-COMP/24km/ TIGF05 KNES 211630 satz/ch2/GOES-15/IR/20190321 1630/NHEM-COMP/24km/ TIGF02 KNES 211630 satz/ch1/COMP/IR/20190321 1500/NHEM-MULTICOMP/1km/ TICF04 KNES 211500 satz/ch1/COMP/VIS/20190321 1500/NHEM-MULTICOMP/1km/ TICF01 KNES 211500 satz/ch1/COMP/WV/20190321 1500/NHEM-MULTICOMP/1km/ TICF03 KNES 211500
Example LDM configuration file REQUEST line: REQUEST NIMAGE "NHEM.*COMP" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file ldmfile.sh script
Alaska National and Regional - Update Interval varies by product
|
|
|
|
|
|
|
|
|
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.62 um VIS Cloud and Surface Feature 59N, 163W 8.20 874 x 1012 Band 3 6.5 um IR Mid-level Water Vapor 59N, 163W 8.20 874 x 1012 Band 4 10.7 um IR Surface/Cloud-top Temp 59N, 163W 8.20 874 x 1012 Band X Rainfall Rate Product 59N, 164W 16.50 436 x 504 Band X Precipitable Water Product 59N, 164W 16.50 436 x 504 Band X Total Precipitable Water Product 59N, 164W 16.50 436 x 504 Band 1 0.62 um VIS Cloud and Surface Feature 60N, 150W 2.00 1632 x 2304 Band 3 6.5 um IR Mid-level Water Vapor 60N, 150W 8.00 408 x 576 Band 4 10.7 um IR Surface/Cloud-top Temp 60N, 150W 8.00 408 x 576 Example LDM/IDD Product ID:s
satz/ch2/GOES-15/VIS/20190321 1700/AK-NATIONAL/8km/ TIGB01 KNES 211700 satz/ch2/GOES-15/WV/20190321 1700/AK-NATIONAL/8km/ TIGB05 KNES 211700 satz/ch2/GOES-15/IR/20190321 1700/AK-NATIONAL/8km/ TIGB02 KNES 211700 satz/ch2/MISC/60/20190321 1521/AK-NATIONAL/1km/ TICB60 KNES 211521 satz/ch2/MISC/PW/20190321 1521/AK-NATIONAL/1km/ TICB17 KNES 211521 satz/ch2/POES/PRXX/20190321 1426/AK-NATIONAL/1km/ TITB29 KNES 211426 satz/ch2/GOES-15/VIS/20190321 1700/AK-REGIONAL/2km/ TIGA01 KNES 211700 satz/ch2/GOES-15/3.9/20190321 1700/AK-REGIONAL/8km/ TIGA04 KNES 211700 satz/ch2/GOES-15/WV/20190321 1700/AK-REGIONAL/8km/ TIGA05 KNES 211700 satz/ch2/GOES-15/IR/20190321 1700/AK-REGIONAL/8km/ TIGA02 KNES 211700
Example LDM configuration file REQUEST line: REQUEST NIMAGE "AK-(NATIONAL|REGIONAL)" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file ldmfile.sh script
Hawaii National and Regional - Update Interval varies by product
NB: thumbnails are links to full resolution images which may be LARGE Channel Description Central Lat, Lon Resolution [km] Size [Lines x Elements] --------+--------------------------------------------+-----------------+-----------------+----------------------- Band 1 0.62 um VIS Cloud and Surface Feature 25N, 179W 14.00 737 x 1012 Band 3 6.5 um IR Mid-level Water Vapor 25N, 179W 14.00 737 x 1012 Band 4 10.7 um IR Surface/Cloud-top Temp 25N, 179W 14.00 737 x 1012 Band X Rainfall Rate Product 25N, 179W 14.00 737 x 1012 Band X Precipitable Water 25N, 179W 14.00 737 x 1008 Band X Total Precipitable Water 25N, 179W 14.00 737 x 1008 Sounder - VIS 25N, 180W 9.80 1073 x 1472 Sounder - 3.98 um 25N, 180W 9.80 1073 x 1472 Sounder - 4.45 um 25N, 180W 9.80 1073 x 1472 Sounder - 6.51 um 25N, 180W 9.80 1073 x 1472 Sounder - 7.02 um 25N, 180W 9.80 1073 x 1472 Sounder - 7.43 um 25N, 180W 9.80 1073 x 1472 Sounder - 11.03 um 25N, 180W 9.80 1073 x 1472 Sounder - 14.06 um 25N, 180W 9.80 1073 x 1472 Band 1 0.62 um VIS Cloud and Surface Feature 25N, 179W 1.00 2080 x 2242 Band 2 3.9 um IR Low Cloud/Fog,Fire Detection 19N, 157W 4.00 520 x 560 Band 3 6.5 um IR Mid-level Water Vapor 19N, 157W 4.00 520 x 560 Band 4 10.7 um IR Surface/Cloud-top Temp 19N, 157W 4.00 520 x 560 Band 6 13.3 um IR CO2, Cloud Heights 19N, 157W 4.00 520 x 560 Example LDM/IDD Product ID:s
satz/ch2/GOES-15/VIS/20190321 1645/HI-NATIONAL/14km/ TIGI01 KNES 211645 satz/ch2/GOES-15/WV/20190321 1645/HI-NATIONAL/14km/ TIGI05 KNES 211645 satz/ch2/GOES-15/IR/20190321 1645/HI-NATIONAL/14km/ TIGI02 KNES 211645 satz/ch2/POES/PRXX/20190321 1426/HI-NATIONAL/1km/ TITI29 KNES 211426 satz/ch2/MISC/PW/20190321 1521/HI-NATIONAL/1km/ TICI17 KNES 211521 satz/ch2/MISC/60/20190321 1426/HI-NATIONAL/1km/ TICI60 KNES 211426 satz/ch2/GOES-15/SOUND-VIS/20190321 1624/HI-NATIONAL/10km/ TIGI59 KNES 211624 satz/ch2/GOES-15/SOUND-3.98/20190321 1624/HI-NATIONAL/10km/ TIGI57 KNES 211624 satz/ch2/GOES-15/SOUND-4.45/20190321 1624/HI-NATIONAL/10km/ TIGI55 KNES 211624 satz/ch2/GOES-15/SOUND-6.51/20190321 1624/HI-NATIONAL/10km/ TIGI52 KNES 211624 satz/ch2/GOES-15/SOUND-7.02/20190321 1624/HI-NATIONAL/10km/ TIGI51 KNES 211624 satz/ch2/GOES-15/SOUND-7.43/20190321 1524/HI-NATIONAL/10km/ TIGI50 KNES 211524 satz/ch2/GOES-15/SOUND-11.03/20190321 1624/HI-NATIONAL/10km/ TIGI48 KNES 211624 satz/ch2/GOES-15/SOUND-14.06/20190321 1624/HI-NATIONAL/10km/ TIGI43 KNES 211624 satz/ch2/GOES-15/VIS/20190321 1645/HI-REGIONAL/1km/ TIGH01 KNES 211645 satz/ch2/GOES-15/3.9/20190321 1700/HI-REGIONAL/4km/ TIGH04 KNES 211700 satz/ch2/GOES-15/WV/20190321 1700/HI-REGIONAL/4km/ TIGH05 KNES 211700 satz/ch2/GOES-15/IR/20190321 1700/HI-REGIONAL/4km/ TIGH02 KNES 211700 satz/ch2/GOES-15/13.3/20190321 1700/HI-REGIONAL/4km/ TIGH06 KNES 211700
Example LDM configuration file REQUEST line: REQUEST NIMAGE "HI-(NATIONAL|REGIONAL)" upstream_IDD_relay Example LDM pattern-action file action Example LDM pattern-action file ldmfile.sh script
