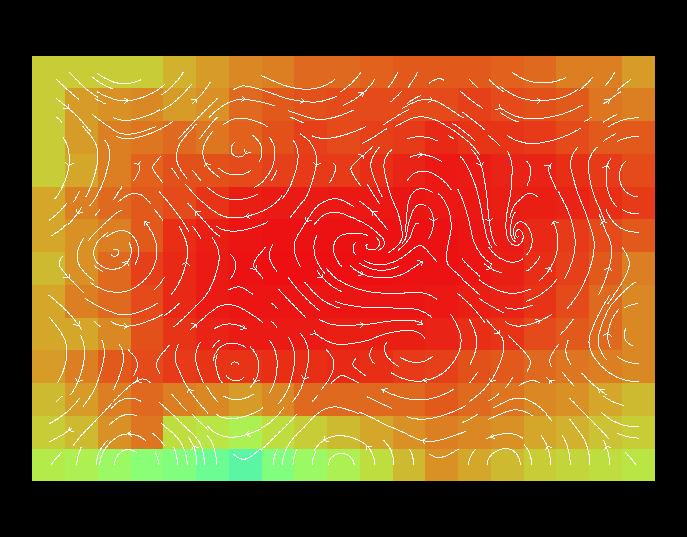

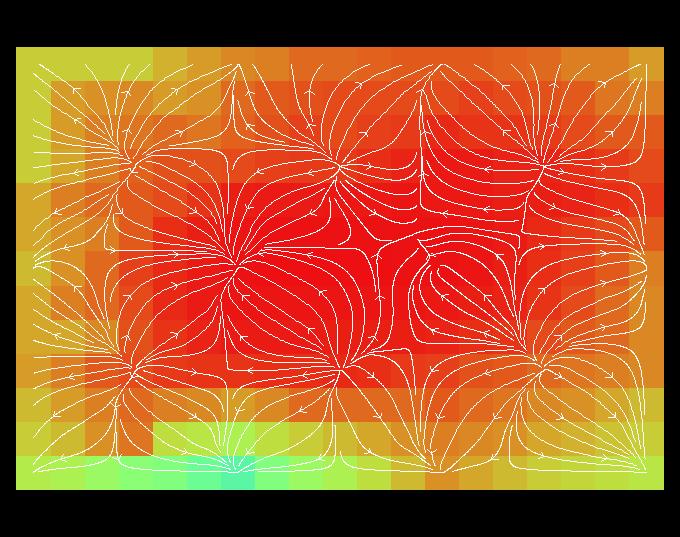

Hi, Don Murray, The following two JPG file is the streamline with the previous version(stream-1.jpg) and the new version(stream-2.jpg). FlowControl cFlow = (FlowControl)streamUMap.getControl(); cFlow.setStreamlineDensity( 1.0 ); cFlow.setStepFactor( 0.5 ); The stream-1.jpg is what I want, but I have no idea about the stream-2.jpg When I run the following code, there is something wrong. I paste the code and errors: /////############### code begin ################// import java.util.*; import java.awt.BorderLayout; import java.awt.Container; import java.awt.Color; import java.awt.Dimension; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; import visad.*; import visad.util.*; import visad.java2d.DisplayImplJ2D; import visad.java3d.DisplayImplJ3D; import visad.java3d.DefaultRendererJ3D; import java.rmi.RemoteException; public class GEam3DView extends JTabbedPane { public GEam3DView() throws RemoteException, VisADException { super(); setupComponent(); } private void setupComponent() { JPanel p = new JPanel(); p.setLayout( new BorderLayout() ); add( "3D", p ); try { DisplayImpl display = new DisplayImplJ3D( "3D" ); p.add( display.getComponent(), BorderLayout.CENTER ); RealType x = RealType.getRealType( "X" ); RealType y = RealType.getRealType( "Y" ); RealType z = RealType.getRealType( "Z" ); RealType pixel = RealType.getRealType( "pixel" ); ScalarMap xMap3D = new ScalarMap( x, Display.XAxis ); ScalarMap yMap3D = new ScalarMap( y, Display.YAxis ); ScalarMap zMap3D = new ScalarMap( z, Display.ZAxis ); ScalarMap pixMap3D = new ScalarMap( pixel, Display.RGB ); ScalarMap areaMap3D = new ScalarMap( pixel, Display.IsoContour ); RealTupleType xyz_domain = new RealTupleType( z, y, x ); visad.Set xyz_domain_set = new Linear3DSet( xyz_domain, -1000, -800, 3, 0, 1000, 20, 0, 1500, 30 ); FunctionType xyz_func_pixel = new FunctionType( xyz_domain, pixel ); FlatField xyz_pixel_ff = new FlatField( xyz_func_pixel, xyz_domain_set ); // xyz_pixel_ff.setSamples( DataReferenceImpl xyz_pixel_ref = new DataReferenceImpl( "xyz_pixel" ); display.addReference( xyz_pixel_ref ); xyz_pixel_ref.setData( xyz_pixel_ff ); display.addMap( xMap3D ); display.addMap( yMap3D ); display.addMap( zMap3D ); display.addMap( pixMap3D ); display.addMap( areaMap3D ); } catch( RemoteException re ) { } catch( VisADException v5de ) { } } public static void main( String[] argv ) { try { JFrame f = new JFrame(); f.add( new GEam3DView() ); f.setSize( 400, 400 ); f.setVisible( true ); } catch( java.rmi.RemoteException re ) { } catch( visad.VisADException ve ) { } } } /////// end of the code ////////////////////// errors as following: java.lang.ArrayIndexOutOfBoundsException: 0 >= 0 at java.util.Vector.elementAt(Vector.java:427) at visad.java3d.ShadowFunctionOrSetTypeJ3D.doTransform(ShadowFunctionOrSetTypeJ3D.java:124) at visad.java3d.DefaultRendererJ3D.doTransform(DefaultRendererJ3D.java:133) at visad.java3d.RendererJ3D.doAction(RendererJ3D.java:181) at visad.DisplayImpl.doAction(DisplayImpl.java:1709) at visad.ActionImpl.run(ActionImpl.java:364) at visad.util.ThreadPool$ThreadMinnow.run(ThreadPool.java:95) thanks lizhi ----- Original Message ----- From: "Don Murray" <dmurray@xxxxxxxxxxxxxxxx> To: "Wang Lizhi" <wlz@xxxxxxxxx> Cc: "Tom Whittaker" <tomw@xxxxxxxxxxxxx>; <visad@xxxxxxxxxxxxxxxx> Sent: Tuesday, January 30, 2007 10:34 PM Subject: Re: VisAD library update > Hi- > > Wang Lizhi wrote: > >> When I use the updated version, my application do not display correctly >> >> Firstly, the Stream is very strange when I use >> streamUMap = new ScalarMap( ux, Display.Flow1X ); >> streamVMap = new ScalarMap( vy, Display.Flow1Y ); > > The streamline code was revamped to be more "realistic" so it > will look different than the previous version. When you say > "strange" does that mean different or inaccurate? If the latter, > can you provide a screen shot with the old visad.jar and the new one? > >> Secondly, some error message is displayed as following: >> java.lang.ArrayIndexOutOfBoundsException: 0 >= 0 >> at java.util.Vector.elementAt( Vector.java:427 ) >> at visad.java3d.ShadowFunctionOrSetTypeJ3D.doTransform( >> ShadowFunctionOrSetTypeJ3D.java:124 ) >> at visad.java3d.DefaultRendererJ3D.doTransform( >> defaultRendererJ3D.java:133 ) >> at visad.java3d.RednererJ3D.doAction( RendererJ3D.java:181 ) >> at visad.DisplayImpl.doAction( DisplayImpl.java:1709 ) >> at visad.ActionImpl.run( ActionImpl.java:364 ) >> at visad.util.ThreadPool$ThreadMinnow.run( ThreadPool.java:95 ) >> Can I get some idea where I can deal with the error? > > Can you provide some code which produces this problem? What is > the data type of the field? > > Don Murray > ************************************************************* > Don Murray UCAR Unidata Program > dmurray@xxxxxxxxxxxxxxxx P.O. Box 3000 > (303) 497-8628 Boulder, CO 80307 > http://www.unidata.ucar.edu/staff/donm > ************************************************************* > > > =============================================================================== > To unsubscribe visad, visit: > http://www.unidata.ucar.edu/mailing-list-delete-form.html > ===============================================================================
Attachment:
Description: JPEG image
Attachment:
Description: JPEG image
