[visad] Strange rendering depending on axis range

• To: "visad@xxxxxxxxxxxxxxxx" <visad@xxxxxxxxxxxxxxxx>
• Subject: [visad] Strange rendering depending on axis range
• From: Tomas Pluskal <pluskal@xxxxxxx>
• Date: Sat, 19 May 2012 06:33:22 +0000

Dear VisAD developers,

We are using VisAD for the visualization of mass spectrometry data as part of
the MZmine 2 framework (http://mzmine.sourceforge.net/).

I found that sometimes the visualization is affected by the range of the axes.
When visualizing a narrow range of data, the plot shows some strange artefacts
such as lines.  After a bit of debugging, I managed to write a short Java
program that demonstrates the issue (attached as VisadTest.java)

The program creates a simple Linear2DSet of 1000 x 1000 dimension. The Z values
are set to zero for the whole domain, therefore the visualization only shows a
flat plane. The strange thing is that depending on the range of the X axis, the
visualization is different (note that the resolution of the Linear2DSet stays
constant).

The range of the X axis is defined in the program here:
        double xMin = 100;
        double xMax = 100.007;

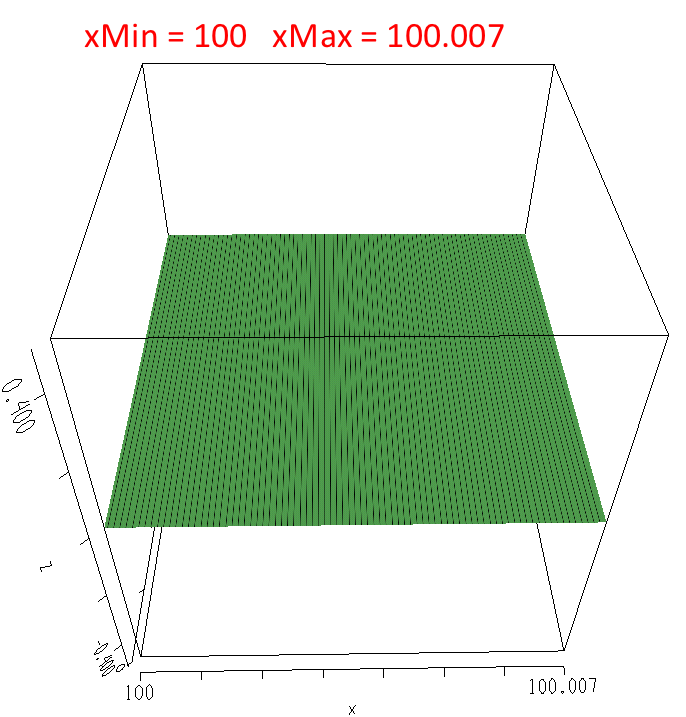

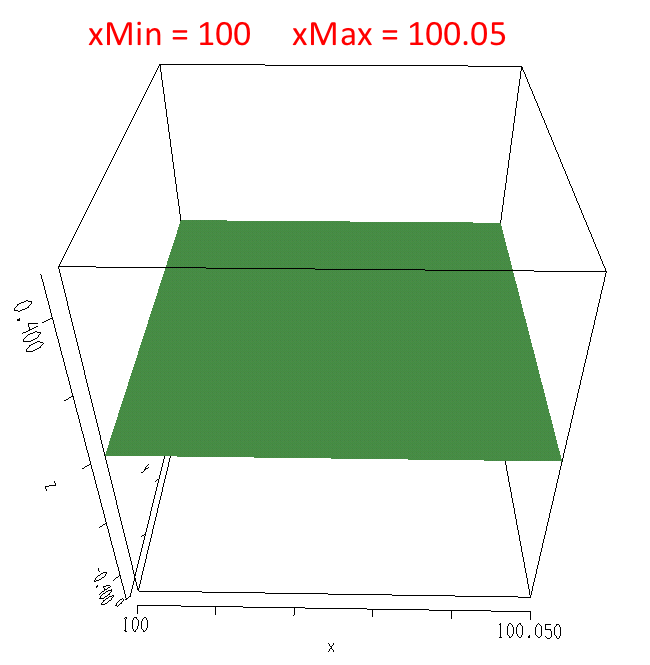

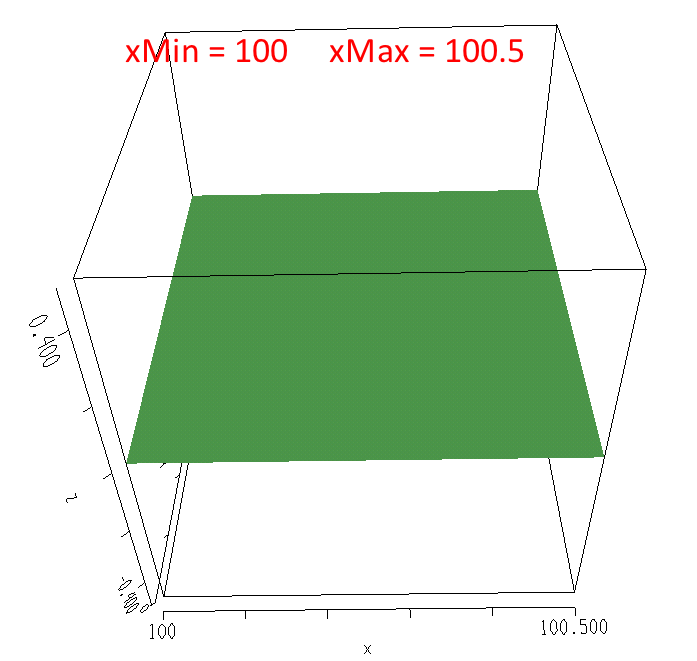

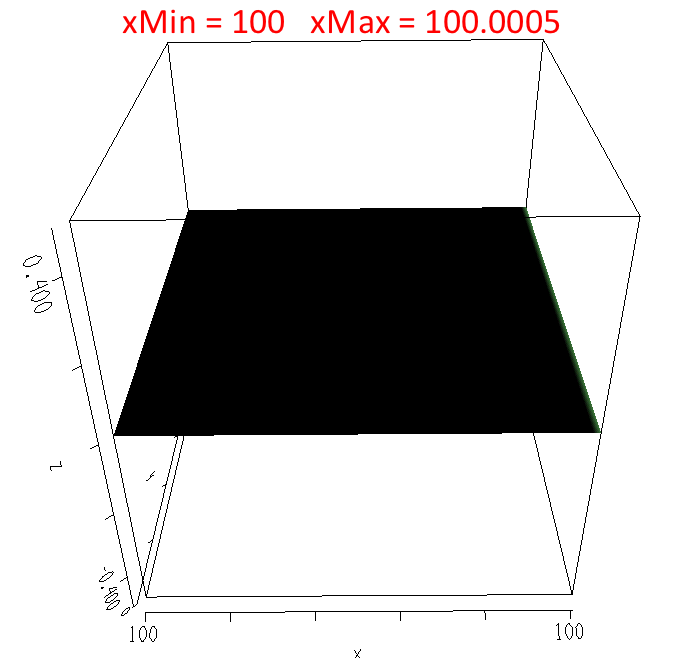

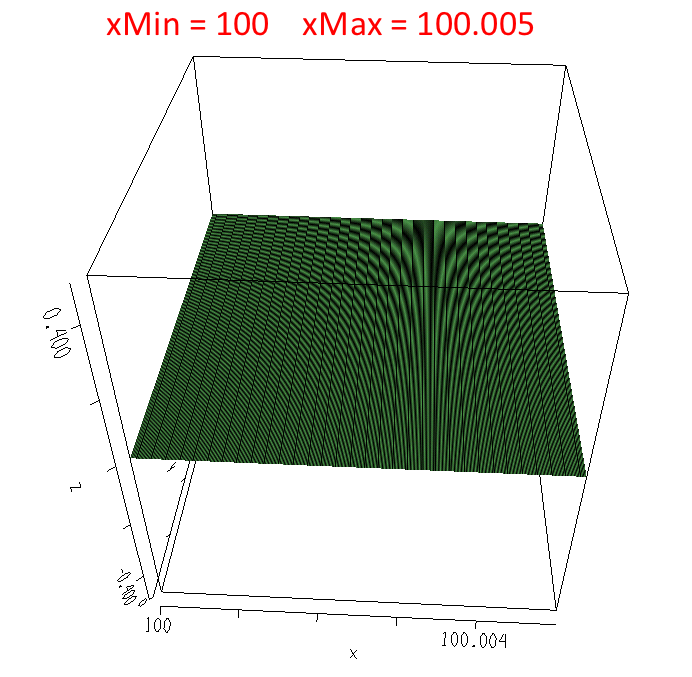

I have attached screenshots demonstrating the VisAD behavior as I change the
range of the X axis from 100-100.5 to 100-100.0005. Finer ranges show some
strange patterns instead of solid color. Is this behavior normal? I believe the
visualization should be exactly the same except the X axis label. Is this a bug
of VisAD?

Best regards,

Tomas

PS: I am using the latest VisAD (Thu Mar 22 13:01:31 CDT 2012  Rev:5952),
running Java 1.6.0_31 on Mac OS X 10.7.4.


===============================================
Tomáš Pluskal
G0 Cell Unit, Okinawa Institute of Science and Technology Graduate University
1919-1 Tancha, Onna-son, Okinawa 904-0495, Japan
TEL: +81-98-966-8684
Fax: +81-98-966-2890

Attachment: VisadTest.java
Description: VisadTest.java

Attachment: Screen Shot 2012-05-19 at 3.08.47 PM.png
Description: Screen Shot 2012-05-19 at 3.08.47 PM.png

Attachment: Screen Shot 2012-05-19 at 3.10.47 PM.png
Description: Screen Shot 2012-05-19 at 3.10.47 PM.png

Attachment: Screen Shot 2012-05-19 at 3.11.49 PM.png
Description: Screen Shot 2012-05-19 at 3.11.49 PM.png

Attachment: Screen Shot 2012-05-19 at 3.15.32 PM.png
Description: Screen Shot 2012-05-19 at 3.15.32 PM.png

Attachment: Screen Shot 2012-05-19 at 3.18.16 PM.png
Description: Screen Shot 2012-05-19 at 3.18.16 PM.png
